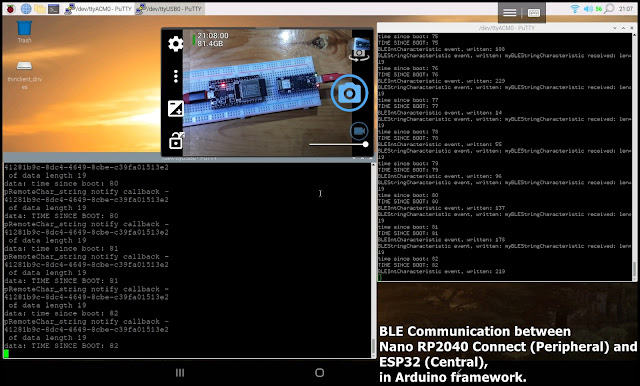

BLE Communication between Nano RP2040 Connect (Peripheral) and ESP32 (Central), in Arduino framework.

Exercise of BLE Communication between Nano RP2040 Connect (Peripheral) and ESP32 (Central), in Arduino framework.

nanoRP2040_BLE_Peripheral_20210623a.ino run on Arduino Nano RP2040 Connect, act as BLE Peripheral (server), wait to be connected.

/*
 * Arduino nano RP2040 Connect exercise:
 * as BLE Peripheral
 *
 * reference:
 * ArduinoBLE library-
 * https://www.arduino.cc/en/Reference/ArduinoBLE
 *
 * In my implementation:
 * BLEByteCharacteristic written event checked by polling.
 * BLEStringCharacteristic/BLEIntCharacteristic using event haandler.
 *
 */
 #include <ArduinoBLE.h>

/*  Visit Online GUID / UUID Generator
 *  (https://www.guidgenerator.com/)
 *  to generate your uuid
 */
const char* serviceUUID =    "20a07a95-8c12-484c-94fa-b828c4465a3c";
const char* byteCharUUID =   "d34dda3b-7b4a-4ce3-9666-a8338db4e604";
const char* stringCharUUID = "41281b9c-8dc4-4649-8cbe-c39fa01513e2";
const char* intCharUUID =    "c7d27dc6-f4d8-4523-b060-3e2e4c187808";

const char* myLocalName = "MyBLE";

BLEService myBLEService(serviceUUID);
BLEByteCharacteristic myBLEByteCharacteristic(byteCharUUID,
                              BLERead|BLEWrite);
BLEStringCharacteristic myBLEStringCharacteristic(stringCharUUID,
                              BLERead|BLEWrite|BLENotify, 24);  //max length = 10
BLEIntCharacteristic myBLEIntCharacteristic(intCharUUID,
                              BLERead|BLEWrite);


void setup() {
  pinMode(LED_BUILTIN, OUTPUT);
  digitalWrite(LED_BUILTIN, LOW);
  Serial.begin(115200);
  delay(100);
  digitalWrite(LED_BUILTIN, HIGH);

  //Started, connect Serial to begin
  while(!Serial);
  Serial.println("\n---Start ---");
  digitalWrite(LED_BUILTIN, LOW);

  Serial.println("Initialize BLE...");
  if(!BLE.begin()){
    Serial.println("Starting BLE failed!");
    while(1);
  }
  Serial.println("BLE initialized.");
  Serial.print("MAC: ");
  Serial.println(BLE.address());
  Serial.println("Service UUIID: \t\t\t" + String(serviceUUID));
  Serial.println("Byte Characteristic UUIID: \t" + String(byteCharUUID));
  Serial.println("String Characteristic UUIID: \t" + String(stringCharUUID));
  Serial.println("Int Characteristic UUIID: \t" + String(intCharUUID));

  Serial.println();

  BLE.setLocalName(myLocalName);
  BLE.setAdvertisedService(myBLEService);
  myBLEService.addCharacteristic(myBLEByteCharacteristic);
  myBLEService.addCharacteristic(myBLEStringCharacteristic);
  myBLEService.addCharacteristic(myBLEIntCharacteristic);
  BLE.addService(myBLEService);

  myBLEStringCharacteristic.setEventHandler(BLEWritten, myBLEString_Written_Hndl);
  myBLEIntCharacteristic.setEventHandler(BLEWritten, myBLEInt_Written_Hndl);

  BLE.advertise();

}

void loop() {
  BLEDevice central = BLE.central();

  if(central){
    digitalWrite(LED_BUILTIN, HIGH);
    Serial.print("Connected: ");
    Serial.println(central.address());

    while(central.connected()){

      if(myBLEByteCharacteristic.written()){
        byte valByte = myBLEByteCharacteristic.value();
        Serial.print("myBLEByteCharacteristic received: ");
        Serial.println(valByte, HEX);
      }
    }

    digitalWrite(LED_BUILTIN, LOW);
    Serial.println("Disconnected.");
  }
}

// Event Handler for myBLEStringCharacteristic Written
// Print received Sring, and write back in upper case.
void myBLEString_Written_Hndl(BLEDevice central, BLECharacteristic characteristic) {
  Serial.print("BLEStringCharacteristic event, written: ");

  Serial.println("myBLEStringCharacteristic received: len=" +
                  String(myBLEStringCharacteristic.valueLength()));
  String valString = myBLEStringCharacteristic.value();
  Serial.println(valString);
  valString.toUpperCase();
  Serial.println(valString);
  myBLEStringCharacteristic.setValue(valString);
}

// Event Handler for myBLEIntCharacteristic Written
void myBLEInt_Written_Hndl(BLEDevice central, BLECharacteristic characteristic) {
  Serial.print("BLEIntCharacteristic event, written: ");

  int valInt = myBLEIntCharacteristic.value();
  Serial.println(valInt);

}

ESP32_BLE_Central_20210623a.ino run on ESP32 Dev. Board, act as Central (client), scan and connect to Peripheral, and send something.

/*
 * ESP32 BLE exercise, as Central (Client)
 * connect to nanoRP2040 BLE Peripheral
 *
 */

 #include "BLEDevice.h"

const String targetName = "MyBLE";

// The remote service/characteristic we wish to connect to.
// UUID(s) have to match with Peripheral side.
const char* serviceUUID =    "20a07a95-8c12-484c-94fa-b828c4465a3c";
const char* byteCharUUID =   "d34dda3b-7b4a-4ce3-9666-a8338db4e604";
const char* stringCharUUID = "41281b9c-8dc4-4649-8cbe-c39fa01513e2";
const char* intCharUUID =    "c7d27dc6-f4d8-4523-b060-3e2e4c187808";

static BLEUUID BLEUUID_service(serviceUUID);
static BLEUUID BLEUUID_byteChar(byteCharUUID);
static BLEUUID BLEUUID_stringChar(stringCharUUID);
static BLEUUID BLEUUID_intChar(intCharUUID);

static BLERemoteCharacteristic* pRemoteChar_byte;
static BLERemoteCharacteristic* pRemoteChar_string;
static BLERemoteCharacteristic* pRemoteChar_int;

static boolean doConnect = false;
static boolean connected = false;
static boolean doScan = false;

static BLEAdvertisedDevice* myDevice;

int notifyDur;

static void notifyCallback(
  BLERemoteCharacteristic* pBLERemoteCharacteristic,
  uint8_t* pData,
  size_t length,
  bool isNotify) {
    Serial.println("pRemoteChar_string notify callback -");
    Serial.println(pBLERemoteCharacteristic->getUUID().toString().c_str());
    Serial.print(" of data length ");
    Serial.println(length);
    Serial.print("data: ");
    Serial.println((char*)pData);
}

class MyClientCallback : public BLEClientCallbacks {
  void onConnect(BLEClient* pclient) {
  }

  void onDisconnect(BLEClient* pclient) {
    connected = false;
    Serial.println("onDisconnect");
  }
};

bool connectToServer() {
    Serial.print("Forming a connection to ");
    Serial.println(myDevice->getAddress().toString().c_str());

    BLEClient*  pClient  = BLEDevice::createClient();
    Serial.println(" - Created client");

    pClient->setClientCallbacks(new MyClientCallback());

    // Connect to the remove BLE Server.
    pClient->connect(myDevice);
    Serial.println(" - Connected to server");

    // Obtain a reference to the service we are after in the remote BLE server.
    BLERemoteService* pRemoteService = pClient->getService(BLEUUID_service);
    if (pRemoteService == nullptr) {
      Serial.print("Failed to find our service UUID: ");
      Serial.println(BLEUUID_service.toString().c_str());
      pClient->disconnect();
      return false;
    }
    Serial.println(" - Found our service");


    // Obtain a reference to the characteristic in the service of the remote BLE server.
    pRemoteChar_byte = pRemoteService->getCharacteristic(BLEUUID_byteChar);
    pRemoteChar_string = pRemoteService->getCharacteristic(BLEUUID_stringChar);
    pRemoteChar_int = pRemoteService->getCharacteristic(BLEUUID_intChar);

    //assume all characteristics found, skip checking
    /*
    if (pRemoteChar_string == nullptr) {
      Serial.print("Failed to find our characteristic UUID: ");
      Serial.println(BLEUUID_stringChar.toString().c_str());
      pClient->disconnect();
      return false;
    }
    */
    Serial.println(" - Found our characteristic");

    // Read the value of the characteristic.
    if(pRemoteChar_string->canRead()) {
      std::string value = pRemoteChar_string->readValue();
      Serial.print("The characteristic value was: ");
      Serial.println(value.c_str());
    }

    if(pRemoteChar_string->canNotify()){
      Serial.println("pRemoteChar_string CAN Notify");
      pRemoteChar_string->registerForNotify(notifyCallback);
    }else{
      Serial.println("pRemoteChar_string CANNOT Notify");
    }

    connected = true;
    return true;
}

/**
 * Scan for BLE servers and find the first one matched advertises service
 */
class MyAdvertisedDeviceCallbacks: public BLEAdvertisedDeviceCallbacks {
 /**
   * Called for each advertising BLE server.
   */
  void onResult(BLEAdvertisedDevice advertisedDevice) {
    //Serial.print("BLE Advertised Device found: ");
    //Serial.println(advertisedDevice.toString().c_str());
    String devName = advertisedDevice.getName().c_str();
    //Serial.println(devName);

    if(devName == targetName){
      Serial.println("Target found-");
      // We have found a device,
      // let us now see if it contains the service we are looking for.
      Serial.println(advertisedDevice.getServiceUUID().toString().c_str());

      if (advertisedDevice.haveServiceUUID() &&
            advertisedDevice.isAdvertisingService(BLEUUID_service)) {
        Serial.println("BLEUUID_service match -");
        BLEDevice::getScan()->stop();
        myDevice = new BLEAdvertisedDevice(advertisedDevice);
        doConnect = true;
        doScan = true;
      } // Found our server
    }
  } // onResult
}; // MyAdvertisedDeviceCallbacks



void setup() {
  Serial.begin(115200);
  delay(1000);
  Serial.println("\n--- ESP32 Start ---");

  BLEDevice::init("");

  // Retrieve a Scanner and set the callback we want to use to be informed when we
  // have detected a new device.  Specify that we want active scanning and start the
  // scan to run for 5 seconds.
  BLEScan* pBLEScan = BLEDevice::getScan();
  pBLEScan->setAdvertisedDeviceCallbacks(new MyAdvertisedDeviceCallbacks());
  pBLEScan->setInterval(1349);
  pBLEScan->setWindow(449);
  pBLEScan->setActiveScan(true);
  pBLEScan->start(5, false);
}

// This is the Arduino main loop function.
void loop() {

  // If the flag "doConnect" is true then we have scanned for and found the desired
  // BLE Server with which we wish to connect.  Now we connect to it.  Once we are
  // connected we set the connected flag to be true.
  if (doConnect == true) {
    if (connectToServer()) {
      Serial.println("We are now connected to the BLE Server.");
    } else {
      Serial.println("We have failed to connect to the server; there is nothin more we will do.");
    }
    doConnect = false;
  }

  // If we are connected to a peer BLE Server, update the characteristic each time we are reached
  // with the current time since boot.
  if (connected) {
    notifyDur = millis();
    String newValue = "time since boot: " + String(notifyDur/1000);

    // Set the characteristic's value to be the array of bytes that is actually a string.
    pRemoteChar_string->writeValue(newValue.c_str(), newValue.length());
    pRemoteChar_int->writeValue(notifyDur, true);
  }else if(doScan){
    BLEDevice::getScan()->start(0);
  }

  delay(1000); // Delay a second between loops.
} // End of loop

---

~ More exercise of Arduino Nano RP2040 Connect.
