Tuesday, May 12, 2020

New Espressif’s ESP development boards received, ESP32-S2, ESP32 aand ESP8266.

Just received ESP development boards from Espressif, ESP32-S2-Saola-1, ESP32-DevKitC V4, and ESP8266-DevKitC.

ESP32-S2-Saola-1 v1.2

ESP32-S2-Saola-1 is a small-sized ESP32-S2 based development board produced by Espressif. Most of the I/O pins are broken out to the pin headers on both sides for easy interfacing. Developers can either connect peripherals with jumper wires or mount ESP32-S2-Saola-1 on a breadboard.

To cover a wide range of users’ needs, ESP32-S2-Saola-1 supports:

  • ESP32-S2-WROOM
  • ESP32-S2-WROOM-I

The full model name of my board is ESP32-S2-Saola-1R, with chip embedded ESP32-S2-WROVER comes with a PCB antenna, 4 MB flash and 2 MB PSRAM.

- ESP32-S2-WROVER & ESP32-S2-WROVER-I Datasheet
- ESP32-S2-WROOM & ESP32-S2-WROOM-I Datasheet

ESP32-DevKitC V4

ESP32-DevKitC is an entry-level development board. It has all the ESP32 pins exposed and is easy to connect and use.

My board named ESP32-DevKitC-VE, with Module ESP32-WROVER-E, comes with a PCB antenna, 4 MB flash and 8MB PSRAM.

ESP32-DevKitC Overview
ESP32-DevKitC V4 Getting Started Guide
- ESP32-WROVER-E & ESP32-WROVER-IE Datasheet

ESP32-DevKitC + 2.8inch 240x320 SPI TFT (ILI9341) using TFT_eSPI library

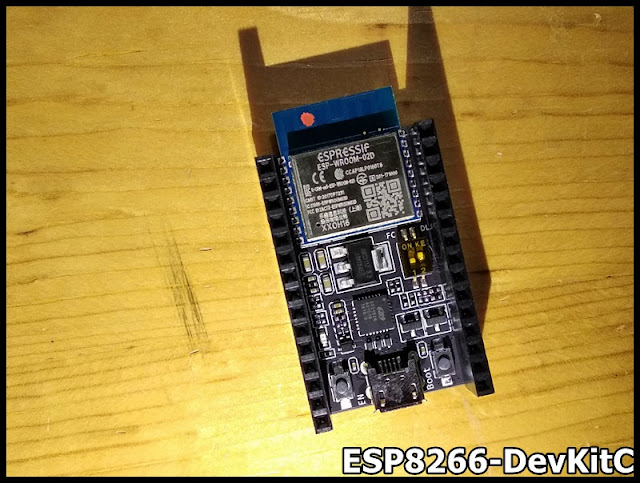

ESP8266-DevKitC is an Espressif compact development board based on ESP8266 modules. All of the I/O pins of the module are broken out to the female header connectors on both sides of the board for easy interfacing. Developers can connect these pins to peripherals as needed.

My board named ESP8266DevKitC-02D-F, with module ESP-WROOM-02D, come with female header.

- ESP8266-DevKitC Getting Started Guide
- ESP-WROOM-02D/02U Datasheet

ESP8266 (NodeMCU/ESP8266 DevKitC) + SSD1306 I2C OLED, Platform IO.

ESP32-S2 vs ESP32 vs ESP8266

(graph source: ESP32S2 tweet)
